Jazzy Air 2

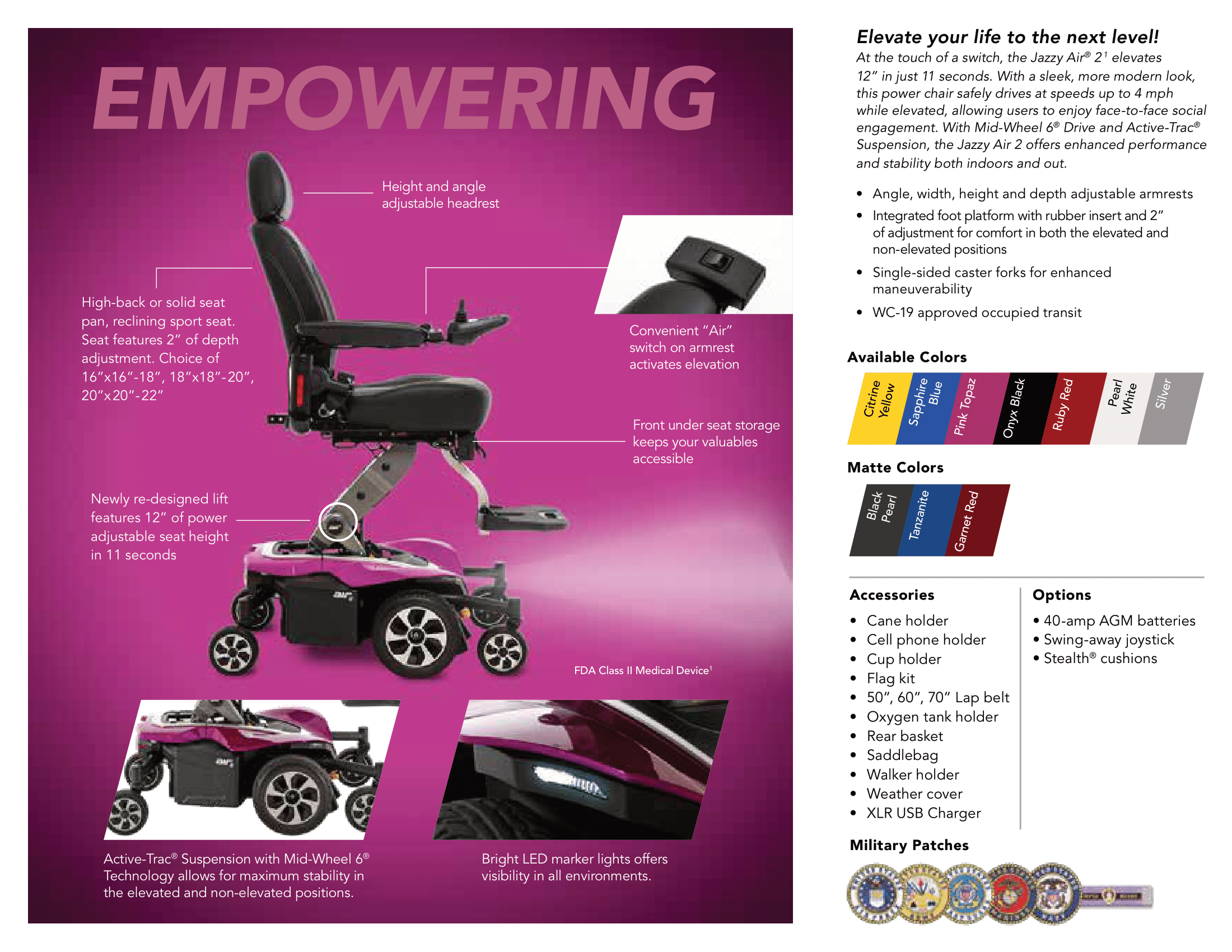

At the touch of a switch, the Jazzy Air® 2 elevates 12” in just 11 seconds. With a sleek, more modern look, this power chair safely drives at speeds up to 4 mph while elevated, allowing users to enjoy face-to-face social engagement.

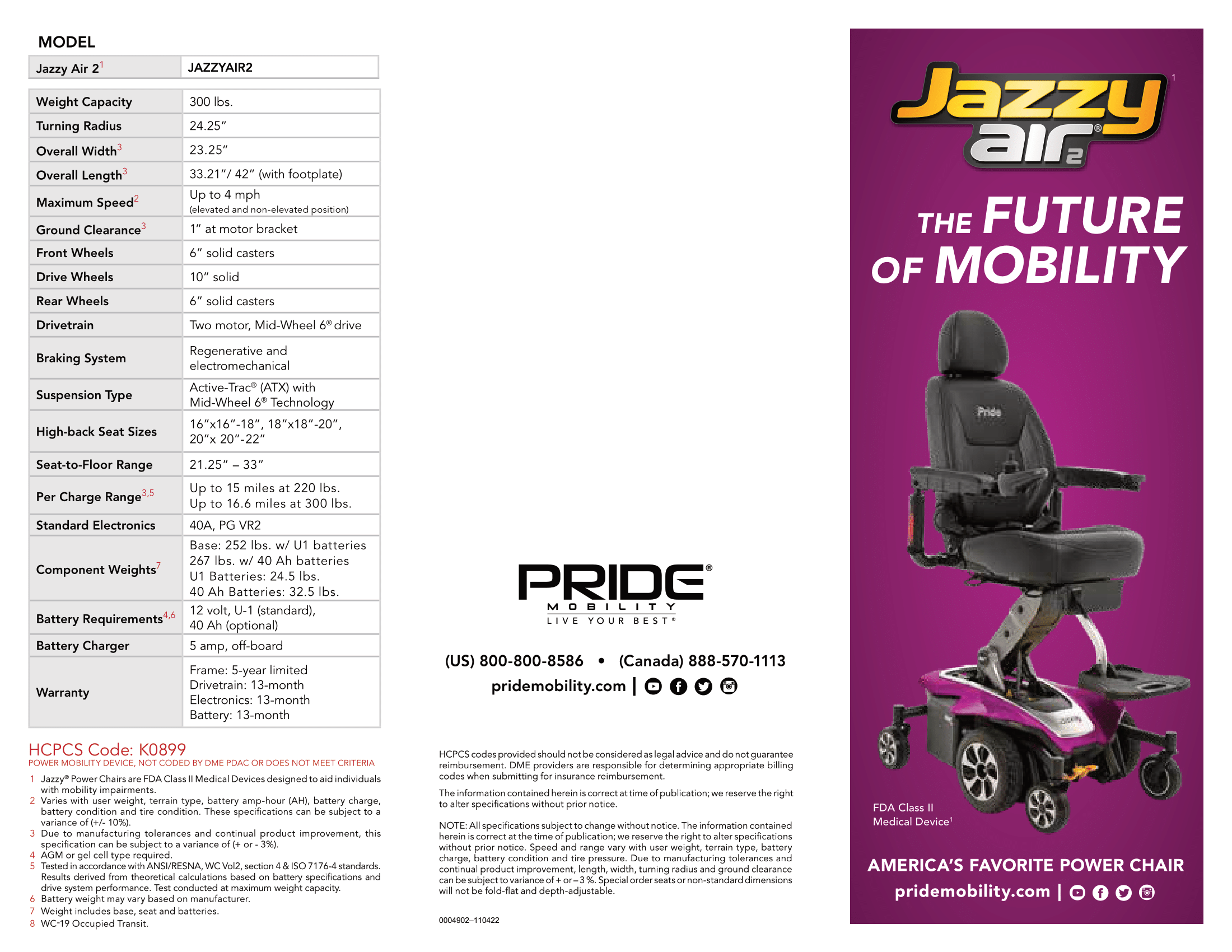

- Specifications
| CATEGORY | SPECIFICATION |
|---|---|
| Model | Jazzy Air® 2
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24.25" |
| Width1 | 23.25" |
| Length1,2 | 33.21"/42" (with footplate) |
| Maximum Speed3 | Up to 4.0 mph (elevated and non-elevated position) |
| Ground Clearance1 | 1" at motor bracket |
| Braking System | Regenerative and electro-mechanical |
| Front Wheels | 6" solid casters |
| Drive Wheels | 10" solid |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two motor, Mid-Wheel 6® drive |
| Weight of Heaviest Piece | 202 lbs. with seat |
| Suspension Type | Active-Trac® with Mid-Wheel 6® Technology |
| High-Back Seat (max. size) | 20"W x 20"-22"D |
| Standard Seat Sizes | 16"x16"-18" 18"x18"-20" 20"x20"-22" |
| High-Back Seat-to-Floor Range | 21.25” – 33” |
| Battery Size (2 required) | 12 volt, U-1 Optional 40 Ah |
| Battery Weight5 | U1 Batteries: 24.5 lbs. 40 Ah Batteries: 32.5 lbs. |
| Standard Battery Charger | 5 amp, off-board |
| Per-Charge Range3,6 | Up to 15 miles at 300 lbs.; Up to 16.6 miles at 220 lbs. |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
| HCPCS | K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria |
| Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
- Testing Standards & Warranty
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes Effectiveness Tests
- Fatigue & Impact Strength Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Product Durability & Reliability Testing
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Weather Operation Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- 5-Year limited warranty on frame
- 13-month limited warranty on electronics
- 13-month limited warranty on drive motors
- 13-month limited warranty on batteries
- Manual
Select link below to go to Pridemobility website for further information on this model.
Pridemobility.com
