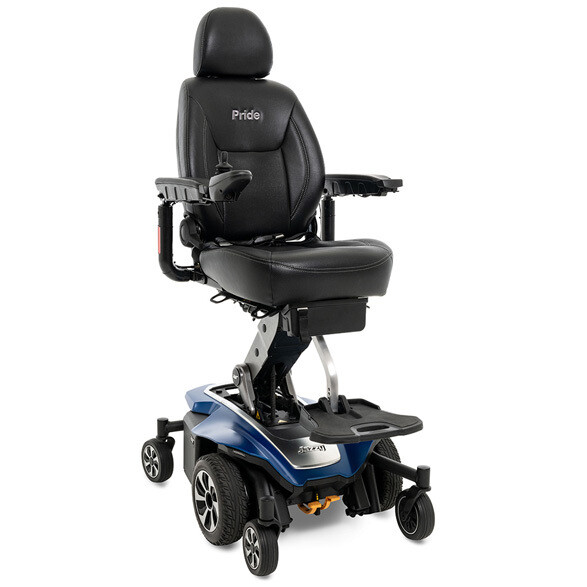

Jazzy Air 2

Description

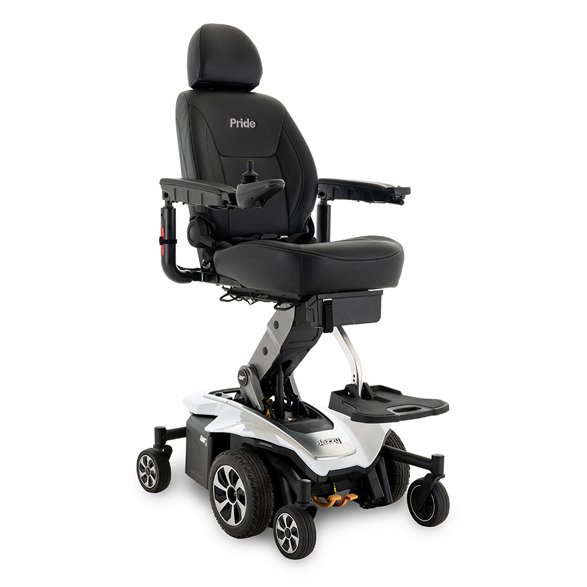

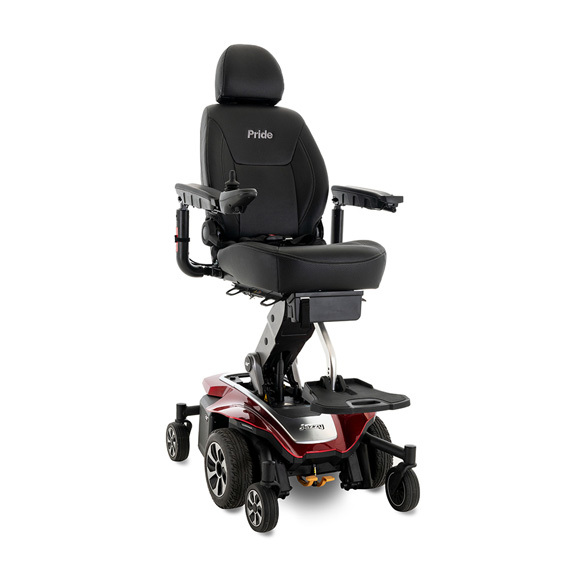

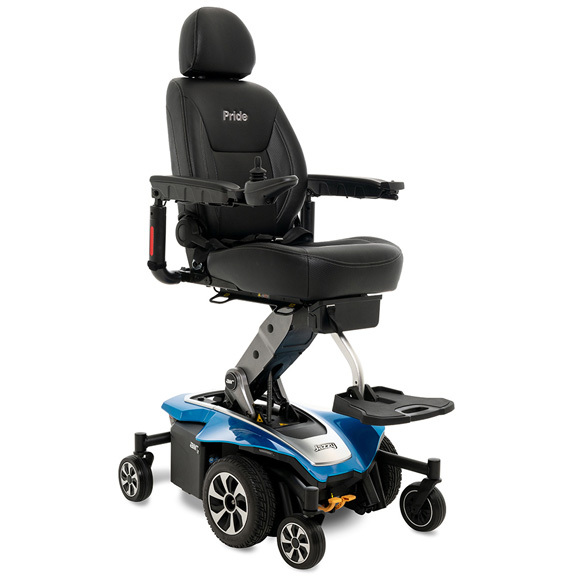

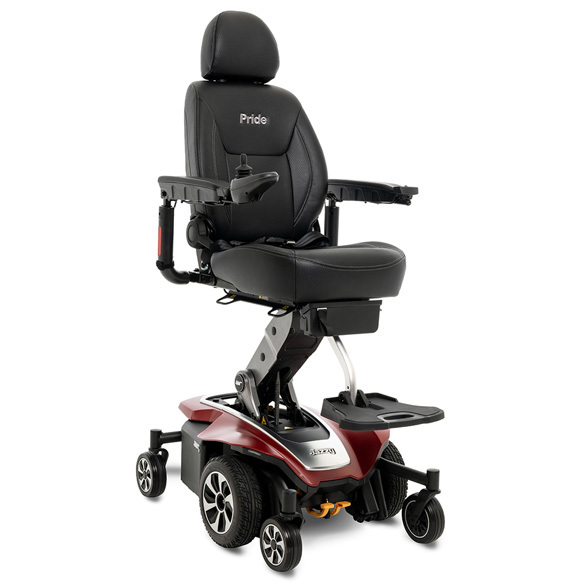

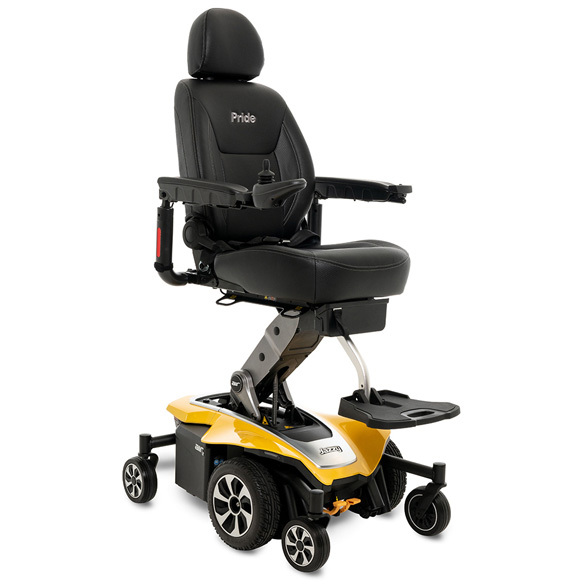

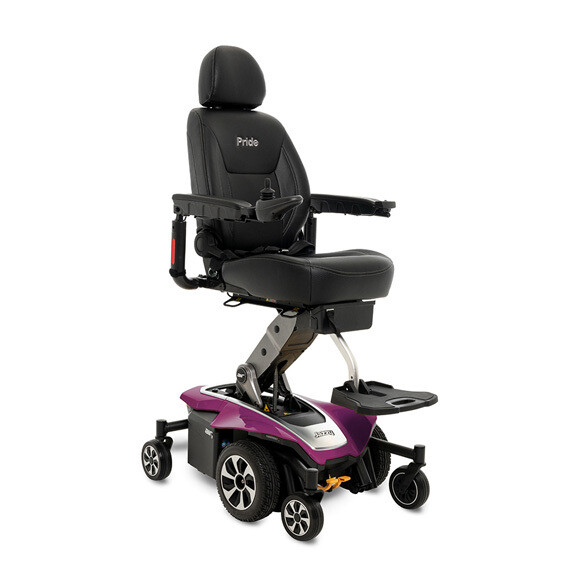

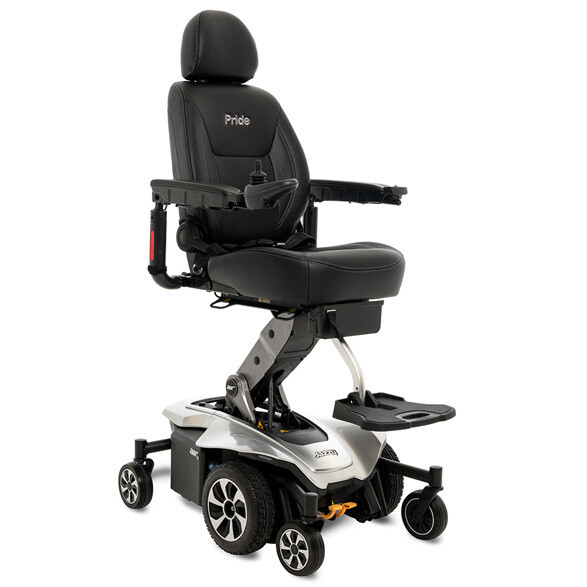

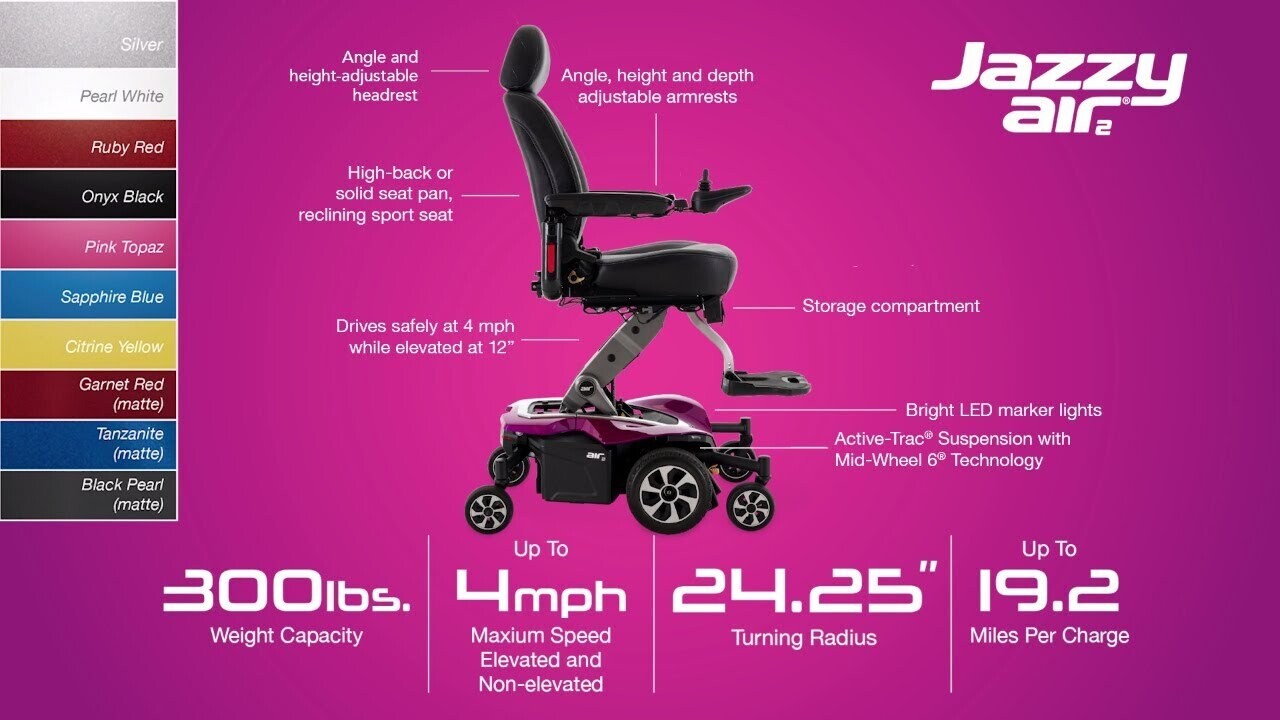

At the touch of a switch, the Jazzy Air® 2 elevates 12” in just 11 seconds. With a sleek, more modern look, this power chair safely drives at speeds up to 4 mph while elevated, allowing users to enjoy face-to-face social engagement.

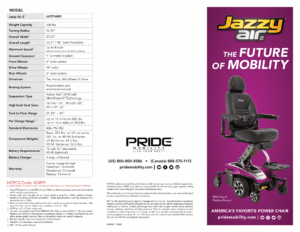

• Specifications

CATEGORY	SPECIFICATION
Model	Jazzy Air® 2
Weight Capacity	300 lbs.
Turning Radius1	24.25″
Width1	23.25″
Length1,2	33.21″/42″ (with footplate)
Maximum Speed3	Up to 4.0 mph (elevated and non-elevated position)
Ground Clearance1	1″ at motor bracket
Braking System	Regenerative and electro-mechanical
Front Wheels	6″ solid casters
Drive Wheels	10″ solid
Rear Wheels	6″ solid casters
Drivetrain	Two motor, Mid-Wheel 6® drive
Weight of Heaviest Piece	202 lbs. with seat
Suspension Type	Active-Trac® with Mid-Wheel 6® Technology
High-Back Seat (max. size)	20″W x 20″-22″D
Standard Seat Sizes	16″x16″-18″ 18″x18″-20″ 20″x20″-22″
High-Back Seat-to-Floor Range	21.25” – 33”
Battery Size (2 required)	12 volt, U-1 Optional 40 Ah
Battery Weight5	U1 Batteries: 24.5 lbs. 40 Ah Batteries: 32.5 lbs.
Standard Battery Charger	5 amp, off-board
Per-Charge Range3,6	Up to 15 miles at 300 lbs.; Up to 16.6 miles at 220 lbs.
Warranty	5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.
HCPCS	K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria
Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

• Testing Standards & Warranty

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride’s Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

• Product Stability & Brakes Effectiveness Tests
• Fatigue & Impact Strength Verification Tests
• Overall Product Performance Verification
• Dimensional Requirement Compliance
• Product Durability & Reliability Testing
• Material Protective Coating Testing Verification
• Misuse and Abuse Testing
• Ergonomic Verification
• Environmental Testing for Adverse Weather Operation Conditions
• Electronic Systems Performance and Durability
• Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
• Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
• UL94VO Flammability Testing for Compliance of Plastic Components
• Electromagnetic Compatibility (EMC)

---

Warranty

• 5-Year limited warranty on frame
• 13-month limited warranty on electronics
• 13-month limited warranty on drive motors
• 13-month limited warranty on batteries

‎ ‎‎Download Warranty Insert

• Manual

Select link below to go to Pridemobility website for further information on this model.

Pridemobility.com

*** PRICE DISCLAIMER: All prices are subject to an unexpected price change due to some of the following reasons: increased shipping charges and wholesale pricing increases. Our company reserves the right to modify (change) prices according to market fluctuations. We try to maintain a consistent retail pricing when we can.



*** Please call us to ask about our Rental Program in regards to certain items that are applicable for rent. Our customer service staff will be able to provide information on: rental rates, availability and delivery.

NOTE: When renting an item there is an option to purchase the rented item. We will credit the first month rental (only the first month) towards the purchase price of the item. We also give you the option of purchasing the rented item -or- a new version of the item.

*** FDA Class II Medical Device. This is a device that is designed to aid individuals with mobility impairments.
