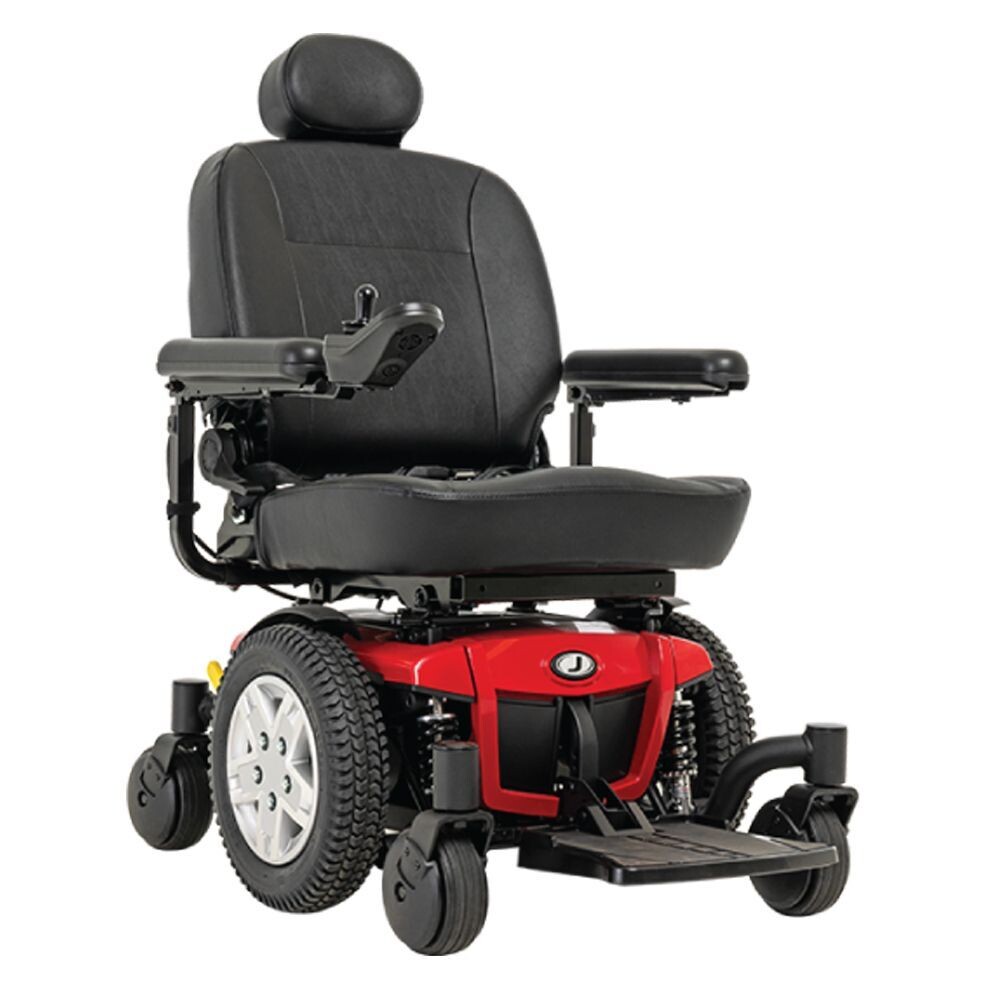

Jazzy 600 ES

Description

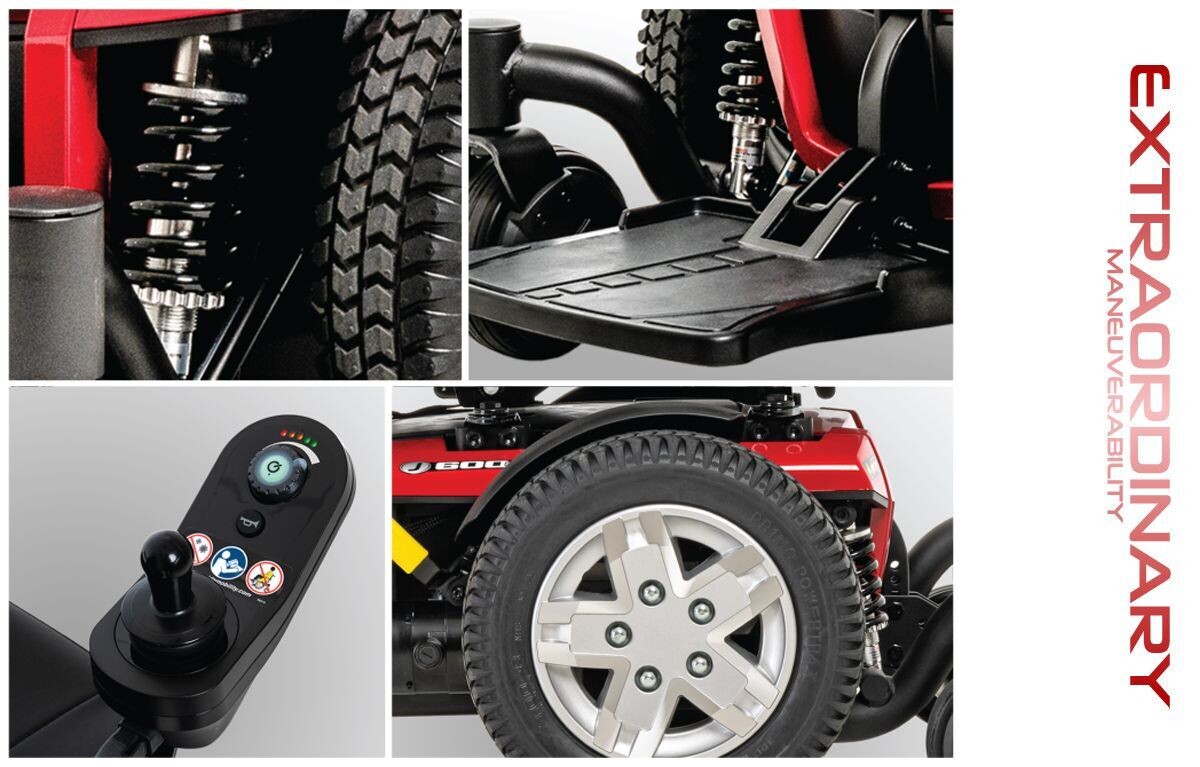

Life may be complicated, yet your power chair should be simple. The Jazzy® 600 ES has 14-inch drive wheels and independent front casters that handle terrain changes easily. Enjoy aggressive precision, a tight turning radius and a flawless design.

• Specifications

CATEGORY	SPECIFICATION
Model	Jazzy® 600 ES
Weight Capacity	300 lbs.
Turning Radius1	20.5″
Width1	24.5″
Length1,2	35.5″/40.25″ (with footplate)
Maximum Speed3	Up to 4.0 mph
Ground Clearance1	2.75″
Front Wheels	6″ solid OMNI-Casters
Drive Wheels	14″ foam filled
Rear Wheels	6″ solid OMNI-Casters
Drivetrain	Two motor, mid-wheel drive
Braking System	Regenerative and electro-mechanical
Suspension Type	Active-Trac® (ATX) with Mid-wheel 6® Technology
High-Back Seat (max. size)	20″W x 20″D
High-Back Seat-to-Floor Range	21” – 24”
Synergy® Seating	20”W 20”D
Synergy® Seat-to-Floor Range	17.25” – 19.25″
Standard Electronics	50 A Dynamic
Battery Size (2 required)	12 volt, NF-22
Battery Weight5	NF-22 at 37 lbs. each
Standard Battery Charger	5A, off-board
Per-Charge Range3,6	Up to 24.8 miles (300 lbs.), up to 29.5 miles (200 lbs.)
Weight of Heaviest Piece4	124 lbs.
Standard Seat Weight	18″ wide – 51.8 lbs. 20″ wide – 54 lbs.
Standard Seat Size	18″ x 18″-20″ 20″ x 18″-20″
Medicare Code Coverage	Group 2: Standard (K0822/K0823)
Warranty	5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries.
Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.

• Testing Standards & Warranty

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).

The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride’s Research & Development Team.

All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.

Some of the items our testing criteria include are:

• Product Stability & Brakes Effectiveness Tests
• Fatigue & Impact Strength Verification Tests
• Overall Product Performance Verification
• Dimensional Requirement Compliance
• Product Durability & Reliability Testing
• Material Protective Coating Testing Verification
• Misuse and Abuse Testing
• Ergonomic Verification
• Environmental Testing for Adverse Weather Operation Conditions
• Electronic Systems Performance and Durability
• Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
• Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
• UL94VO Flammability Testing for Compliance of Plastic Components
• Electromagnetic Compatibility (EMC)

---

Warranty

• 5-Year limited warranty on frame
• 13-month limited warranty on electronics
• 13-month limited warranty on drive motors
• 13-month limited warranty on batteries

‎ ‎‎Download Warranty Insert

• Manual

Select link below to go to Pridemobility website for further information on this model.

Pridemobility.com
